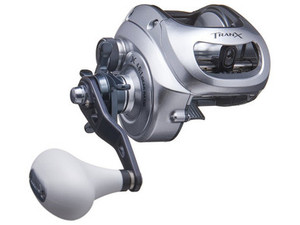

TRANX 200Shimano built the Tranx 200 to withstand the harshest saltwater environments. After a decade-long corrosion study, Shimano developed a reel concept that will deliver long-lasting durability and performance for inshore anglers around the world.
SPECIFICATIONS
PRODUCT CODE | LINE RETRIEVE PER CRANK | RETRIEVE | POWERPRO LINE CAPACITY | BEARINGS | GEAR RATIO | WEIGHT | MAX DRAG | MONO LINE CAPACITY |
---|---|---|---|---|---|---|---|---|
TRX200A | 26 | Right | 30/190, 50/120, 65/80 | 3+1 | 6.2:1 | 8.5 | 13 | 8/180, 10/155, 14/110 |
TRX200AHG | 30 | Right | 30/190, 50/120, 65/80 | 3+1 | 7.2:1 | 8.5 | 13 | 8/180, 10/155, 14/110 |
TRX200AXG | 36 | Right | 30/190, 50/120, 65/80 | 3+1 | 8.5:1 | 8.5 | 12 | 8/180, 10/155, 14/110 |
TRX201AHG | 30 | Left | 30/190, 50/120, 65/80 | 3+1 | 7.2:1 | 8.5 | 13 | 8/180, 10/155, 14/110 |
S A-RB BAITCASTING
S A-RB bearings are put through the same process as Shimano’s A-RB bearings but feature shields on both sides of the bearings. These shields reduce the possibility of salt or sand inhibiting rotation of the bearing.
CROSS CARBON DRAG BAITCASTING
The Cross Carbon Drag material provides a wider range of drag settings compared to traditional drag materials. The Cross Carbon Drag provides the smoothest Shimano drag performance ever while providing anglers with increased durability.
HAGANE BODY BAITCASTING
The HAGANE Body is a metal reel body with high rigidity. The body rigidity and impact resistance virtually eliminates body flexing on the reel while fighting fish. The result transforms the angler's actions directly into cranking power, increasing efficiency through strength.
SUPER FREE SPOOL
Super Free Spool eliminates friction on the spool shaft during the cast. Standard baitcasting reels are constructed in a way that when the clutch bar is pressed down, the pinion gear is freed and can actually drag on the spool shaft. This creates friction that can limit the length of a cast. But baitcasting reels with Super Free Spool are constructed so that the pinion gear is supported by a ball bearing. When the clutch is disengaged in preparation for a cast, the pinion gear and spool shaft are kept in perfect alignment. The result: zero friction is placed upon the spool shaft and enhances casting performance.
