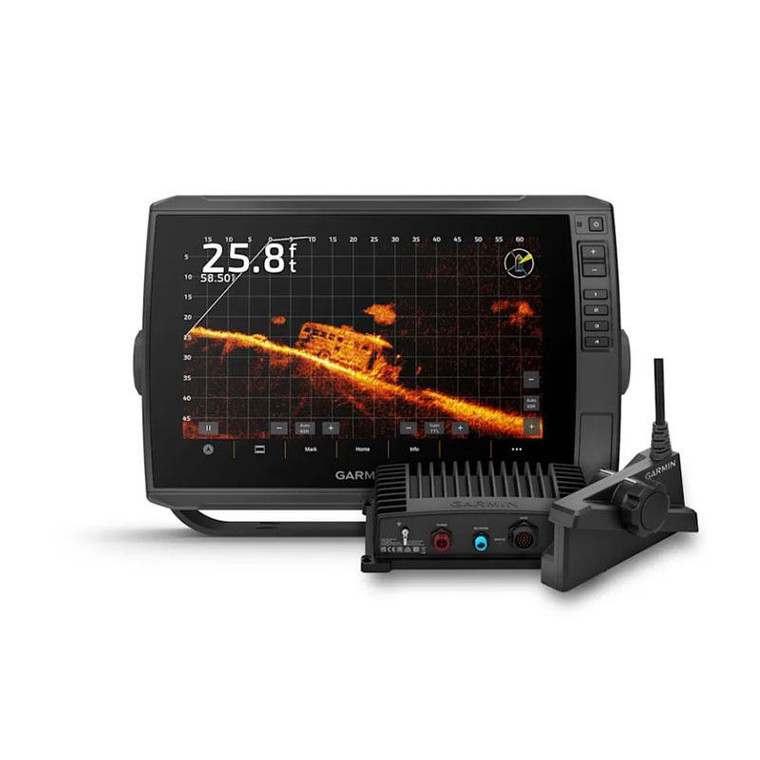

GARMIN - ECHOMAP ULTRA 2 LiveScope Plus Bundles

GARMIN - ECHOMAP ULTRA 2 LiveScope Plus Bundles

GARMIN
$2,999.99 - $3,799.99
Current Stock:
Adding to cart… The item has been added
Description
Take your fishing to new depths with our all-in-one ECHOMAP Ultra 2 and Livescope Plus bundle, designed to deliver unmatched sonar clarity, precision mapping, and seamless integration. This powerful package provides real-time sonar views of fish, structure, and your lure in stunning detail. With effortless installation and pre-configured compatibility, you’ll be on the water faster and fully equipped for success. Available in a 10” and 12” models.

General
Dimension 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm)
Weight

5.5 lbs (2.5 kg)
Water rating

IPX7
Touchscreen yes
Display Type WXGA, IPS
Display Size 10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal)
Display resolution 1280 x 800 pixels
Mounting Options Bail or flush
Input Touchscreen with Keyed Assist
Maps & Memory
Accepts Data Cards

2 microSD cards
Waypoints

5000
Track points 50,000
Tracks 50 saved tracks
Navigation Routes 100
Sensors
GPS yes
GLONASS yes
Galileo yes
BeiDou yes
Has built-in receiver yes
Receiver

10 Hz
NMEA 2000 Compatible yes
Supports WAAS yes
Supports multi-band, multi-constellation GPS yes
Optional Map Support
BlueChart g3 yes
BlueChart g3 Vision yes
Garmin Navionics+™ yes
Garmin Navionics Vision+™ yes
TOPO 100K yes
Standard Mapping yes
Garmin Quickdraw Contours yes
Chartplotter Features
AIS yes
DSC yes
Supports Fusion-Link™ compatible radios yes
ActiveCaptain® compatible

yes
Sailing Features yes
Electrical Features
Power Input 9 to 18 Vdc
Typical current draw at 12 Vdc 2.5 A
Maximum current draw at 12 Vdc 5.0 A
Maximum power usage at 10 Vdc 36 W
Sonar Features
Displays sonar yes
Power output 600 W
Traditional sonar (dual frequency/beam) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü Built-in 260/455/800/1000/1200 kHz
SideVü Built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar yes
LiveScope yes
Connections
NMEA 2000® ports 1
Garmin Marine Network Ports

2 (large connector)
12-pin transducer ports 12-pin scanning sonar
ANT® (Connectivity) yes
Garmin Wi-Fi network (local connection) yes


IN THE BOX
  • ECHOMAP™ Ultra 2 126sv chartplotter with Garmin Navionics+™ maps for U.S. coastal and inland/Canada offshore
  • LiveScope™ Plus System (includes GLS™ 10 black box, LiveScope™ Plus LVS34 transducer, perspective mount, trolling motor barrel mount, and all required cables) • 20 ft. (6.1 m) Garmin Marine network cable (large connectors)
  • Power cable
  • Bail mount with quick release cable
  • Protective sun cover
  • 8-pin transducer to 12-pin sounder adapter cable
  • Hardware
  • Documentation
